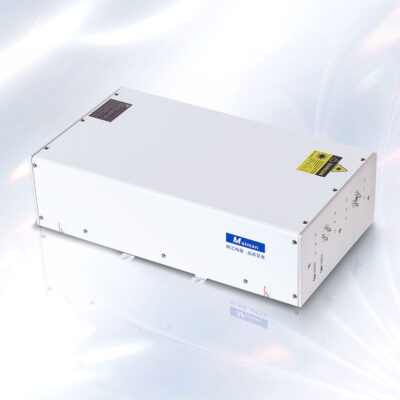

MMEPU-355-18/20/25/30

High power UV laser source effectively solves the problem of power attenuation, and has superior beam quality and pulse stability, worry-free use.

Features:

  • Adopt UV-clean patented technology to solve power attenuation, worry- free use;
  • The service life exceeds 20000 hours, maintenance free and regular commissioning is not required;
  • Excellent beam quality M²< 1.3, simple process and higher efficiency;
  • 3-layer protection, protection grade IP65, more suitable for harsh working environment;
  • Rugged, easy to install and easy to integrate.

Application:

  • Solar cell scribing
  • PCB & FPC splitting and cutting
  • Silicon wafer Scribing
  • Film cutting
Categories: ,

Description

Model No. MMEPU-355-18 MMEPU-355-20 MMEPU-355-25 MMEPU-355-30
Optical Characteristics
Wavelength (nm) 355nm±1nm
Average Power (W) >18W@50kHz >20W@50kHz >25W@50kHz >30W@50kHz
Single Pulse Energy (uJ) ~350uJ@50kHz ~400uJ@50kHz ~500uJ@50kHz ~600uJ@50kHz
Pulse Width (ns) 12ns@50kHz
Repetition Rate 50kHz-500kHz
Pulse Stability <3% rms
Long Term Stability <±3%
Beam Characteristics
Polarization Ratio Horizontal;>100:1
Beam Diameter ~1mm(at exit)/~6mm(Built in beam expander)
Beam Circularity >90%
Spatial Mode TEM00, M² <1.3
Operating Specifications
Warm-up Time <15 minutes from cold start
Electrical Requirement DC24V, 500W
Ambient Temperature 10-35℃, RH<80%
Storage Conditions -10-40℃,RH<90%
Physical Characteristics
Cooling System Water-Cooled
Water Temperature (laser inlet) 25℃
